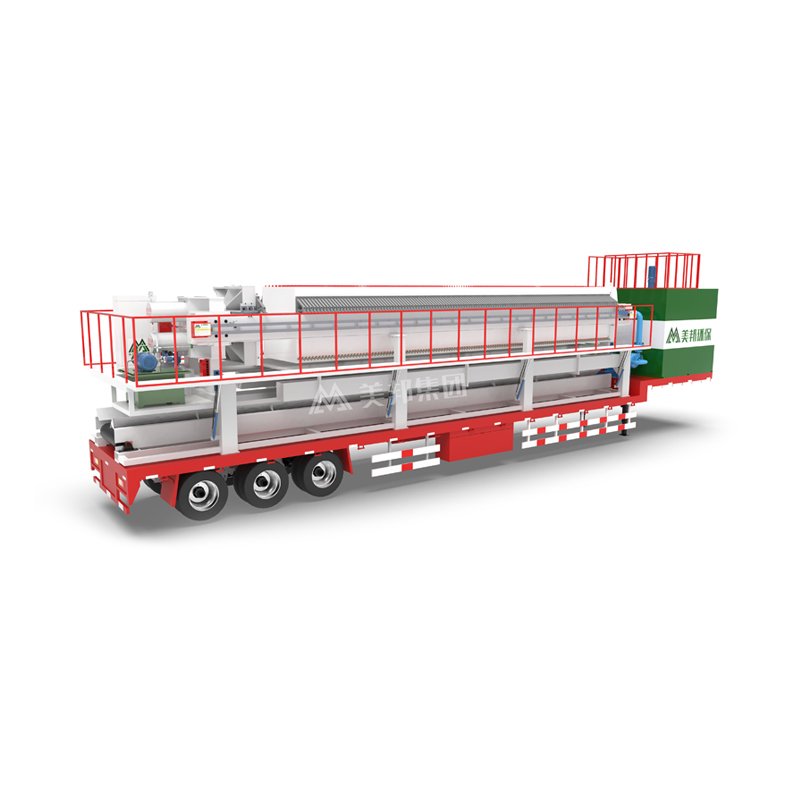

Trailer-Mounted Plate and Frame Filter Press
The trailer-mounted plate and frame filter press is a mobile solid-liquid separation solution featuring a durable Q345B frame, welded box-beam construction, CO₂-protected welded components, and precision surface treatment for safe, stable, and long-lasting operation.
Technical Parameters
Trailer-Mounted Plate and Frame Filter Press

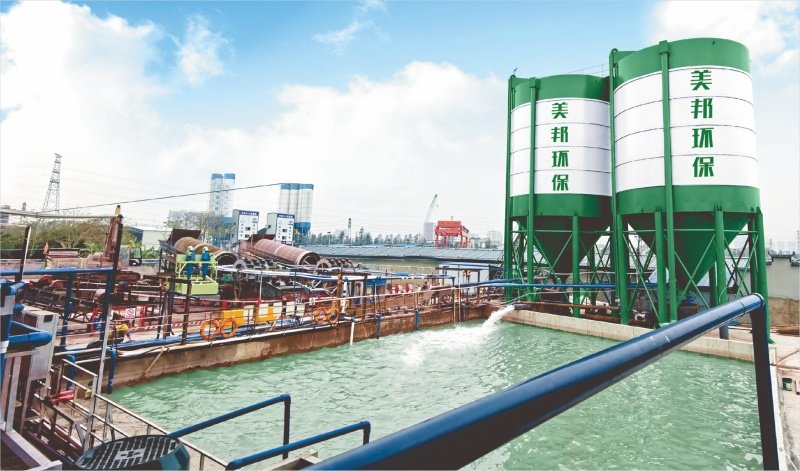

Applicable for Piling Slurry Treatment, Shield Tunneling Slurry (TBM Slurry), River Dredging and Rehabilitation Projects, and Industrial Wastewater Treatment.
| Product Advantages | ||
| Secondary squeezing reduces the cake moisture content to below 30%. | High structural strength with strong pressing force. | Large processing capacity with low power consumption. |
| The treated water can be recycled for reuse |
24-hour fully automatic continuous operation. |
Strong corrosion resistance, improving operational profitability. |
|
Technical Parameters |
|||||
| Filtration Area | Filter Plate Size | Number of Filter Plates |
Cake Thickness | Number of Filter Chambers |
Total Theoretical Chamber Volume |
| （m²） | (mm) | (mm) | (mm) | (pc) | (m²） |
| 100 | 1000 x 65 | 61/2 | 32 | 62 | 1.5 |
| 250 | 1250 x 65 | 94/2 | 30 | 9 | 4.4 |
| 300 | 1500 x 75 | 76/2 | 35 | 77 | 5.3 |
| 400 | 1500 x 75 | 101/2 | 35 | 102 |
7 |
Trailer-Mounted Plate and Frame Filter Press

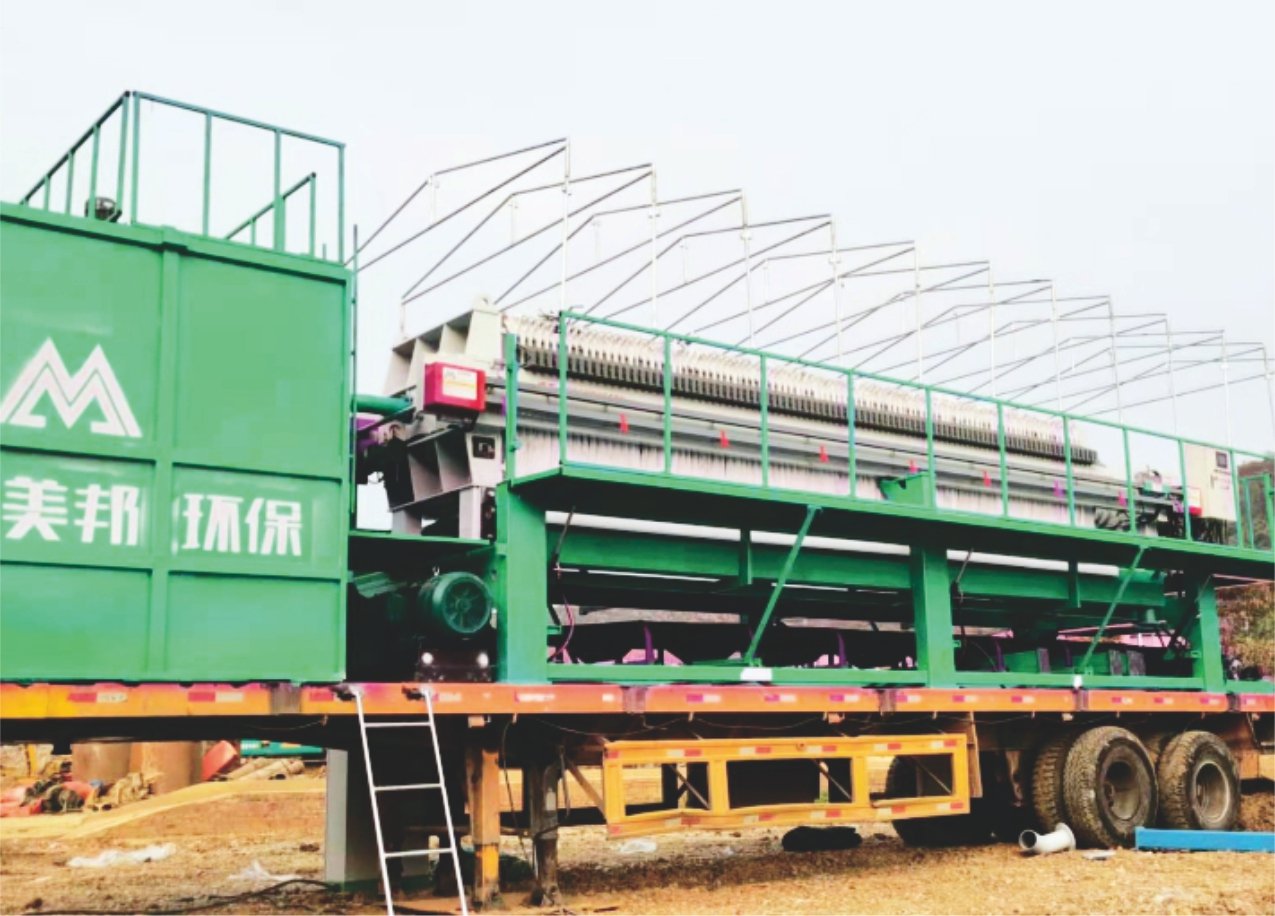

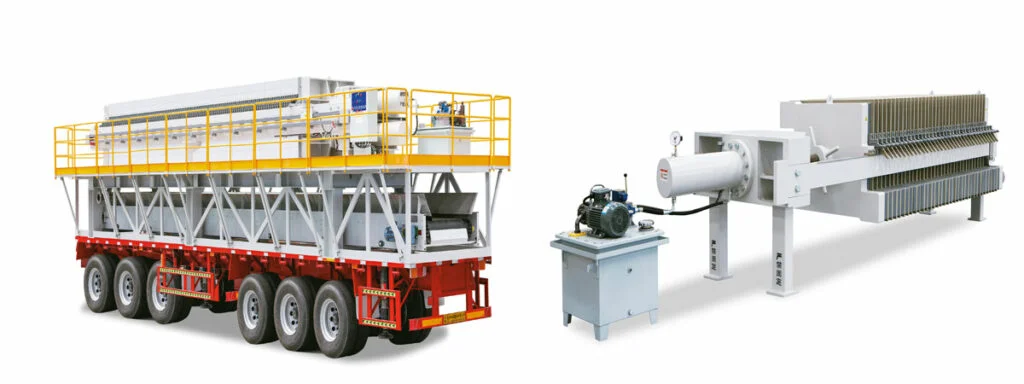

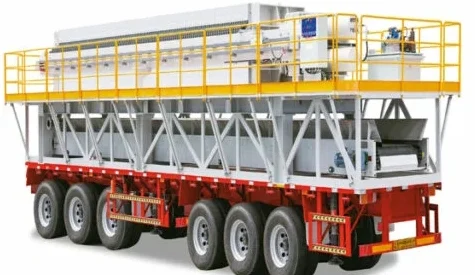

The Trailer-Mounted Plate and Frame Filter Press is a highly efficient and mobile solid-liquid separation solution designed for on-site sludge dewatering applications. As a type of Mobile Plate and Frame Filter Press, this system integrates the filter press unit, hydraulic station, control cabinet, and feeding pump onto a heavy-duty trailer platform, allowing convenient transportation and rapid deployment to different job sites.

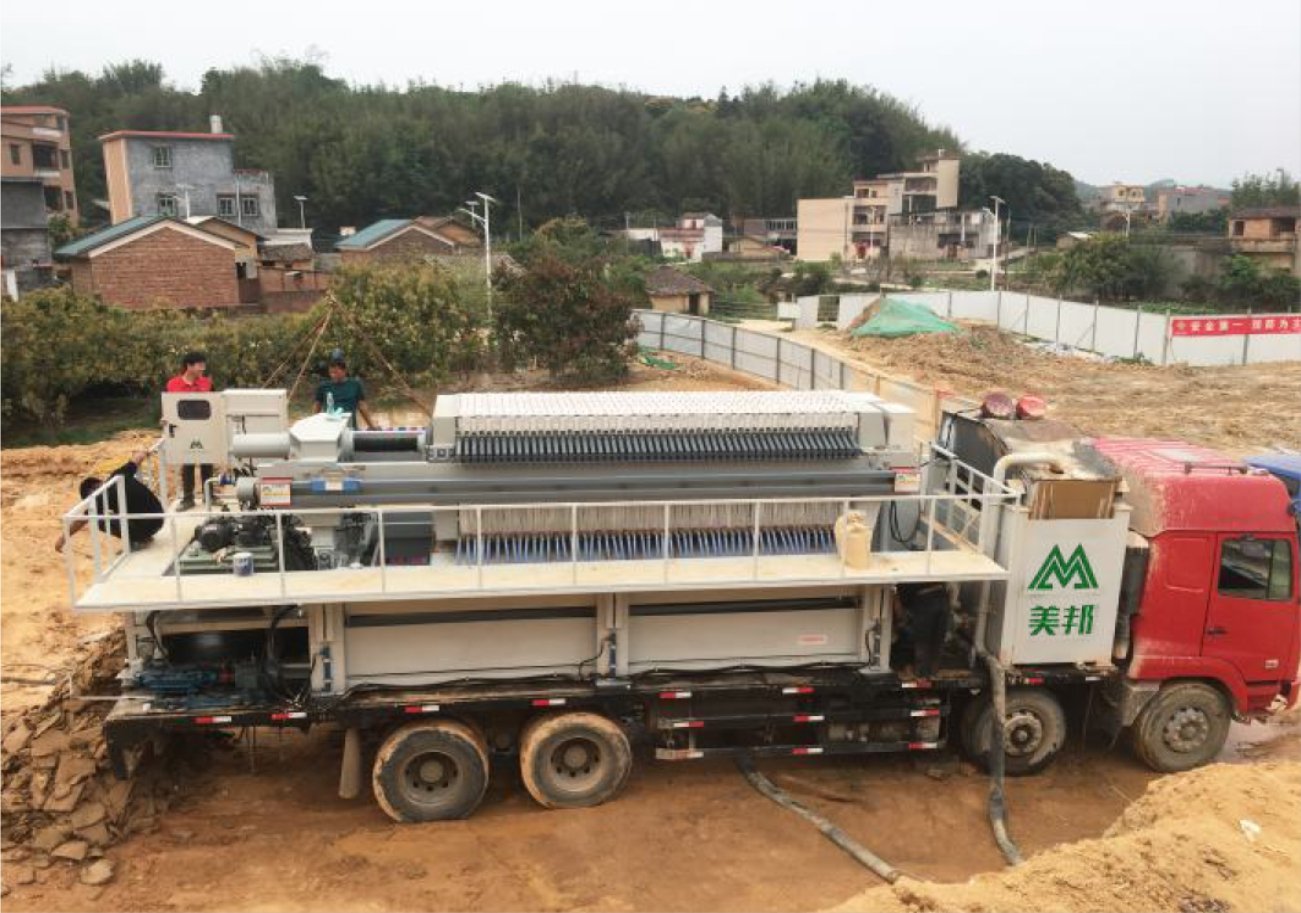

This trailer-mounted design is especially suitable for construction slurry treatment, piling slurry dewatering, mining wastewater management, river dredging projects, and industrial wastewater treatment. The system delivers strong mechanical pressure through its plate and frame structure, producing low-moisture filter cakes and achieving high solid recovery rates.
Compared with traditional fixed installations, the Trailer-Mounted Plate and Frame Filter Press eliminates the need for complex civil construction and significantly reduces installation time. Equipped with automatic hydraulic closing and PLC control, the equipment ensures stable operation, easy maintenance, and reduced labor costs.
With its compact structure, durable steel frame, and high dewatering efficiency, the Mobile Plate and Frame Filter Press provides a flexible, cost-effective, and environmentally friendly solution for temporary and remote sludge treatment projects.
