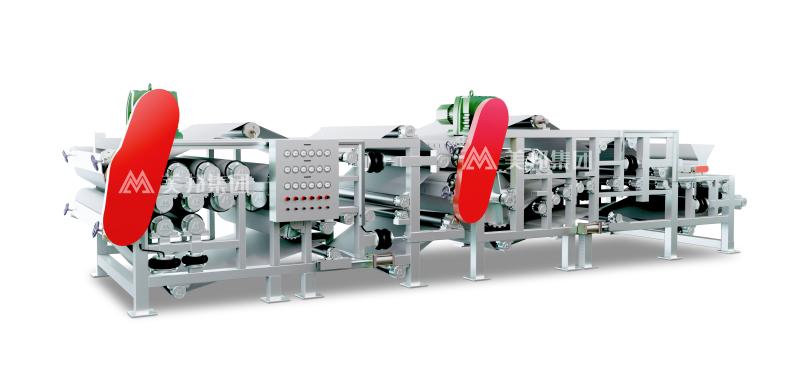

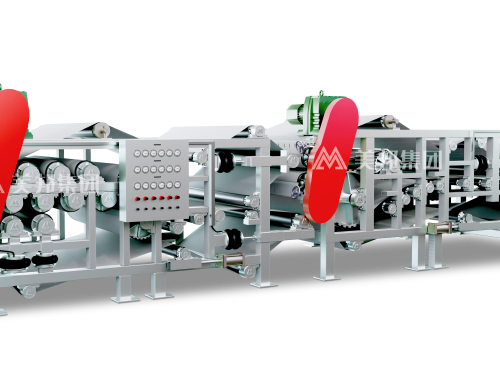

Dual Head Dewatering Press
The dual-head press provides higher throughput and enhanced dewatering efficiency with strong mechanical pressure, stable heavy-duty performance, customizable configurations, and optional food-grade or corrosion-resistant materials for diverse applications.
Dual Head Dewatering Press Introduction
The Dual Head Dewatering Press is a high-efficiency solid-liquid separation machine designed for continuous and large-capacity dewatering applications. Featuring a dual-pressing-head structure, the equipment enables simultaneous or staged pressing, significantly improving processing capacity and dewatering efficiency.
By applying stable mechanical pressure from two pressing units, the Dual Head Dewatering Press effectively removes free water from materials with high moisture content, producing drier filter cakes and reducing overall waste volume. It is especially suitable for materials that require higher throughput or enhanced dewatering performance.
The machine is designed with a robust structure to ensure stable operation under long-term and heavy-duty conditions. Material-contact parts can be manufactured using food-grade or corrosion-resistant materials according to application requirements, making the equipment suitable for both food processing and industrial dewatering applications.
With flexible configuration options, the Dual Head Dewatering Press can be customized in terms of capacity, pressure control, and automation level to meet different production needs. It is widely used in food waste treatment, fruit and vegetable residues, agricultural by-products, sludge pre-dewatering, and other solid-liquid separation processes.
The Dual Head Dewatering Press offers an efficient, reliable, and cost-effective solution for reducing moisture content, lowering disposal costs, and improving resource recovery efficiency.
| Filter área (㎡) | 100 / 200 / 300 / 400 / 500 / 600 / 700 |
|---|---|
| Dimensions of diaphragm plate and box plate(mm) | 1000x65x60/1250x75x70/1500x80x75/2000x90x85 |
| Number of filter plate(mm) | 31+30/38+37/51+50/64+63/41+40/55+54 |
| Filter cake thickness(mm) | 30/35 |
| Mumber of filter chambers(pc) | 62/76/102/128/82/110 |
| Theoretical total volumen of filter chamber(m³) | 1.5/3.0/5.3/7.0/8.8/10.5/14.0 |
| Overall dimensions of machine L x W x H(mm) | 7047 x 1558 x 1420/9745 x 2374 x 1560/8663 x 2940 x 1809/11100 x 2940 x 1809/12814 x 2930 x 1809/11100 x 2900 x 24000/13138 x 3370 x 2400 |
| Working pressure in filter chamber(Mpa) | ≤1.2 |
| Power of pulling plate motor(Kw) | 1.1/2.2 |
| Overall quality(T) | 6.98/9.98/24.00/25.98/27.98/43.00/53.00 |
